When power & flow demands exceed the limits of raditional EOM-style fuel pumps, the Fuelab Flange Mount Brushless Twin Screw Fuel Pumps step up to the plate, delivering stable and reliable pressure and flow, supporting up to 2800+ horsepower at 60psi while consuming less than 25A of current. This makes the one of the most efficient single pump setups available on the market today!

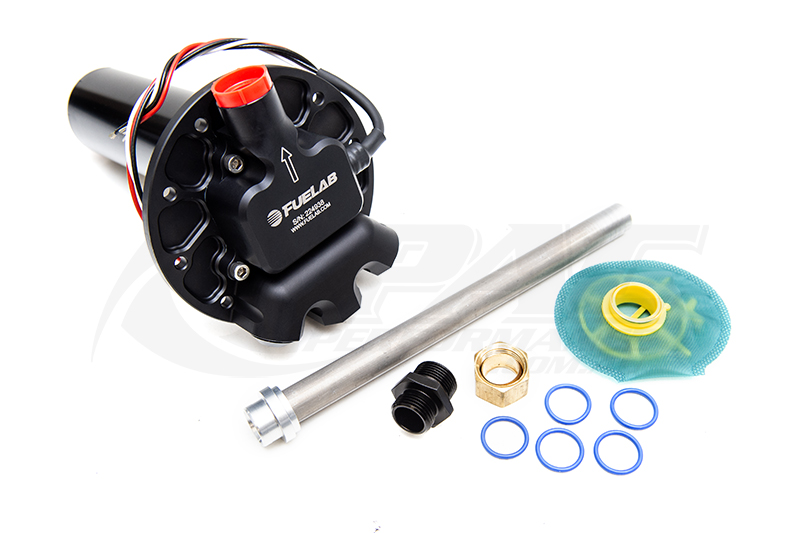

Designed to be integrated into OE fuel tanks and aftermarket fuel cells, the Fuelab Flange Mount Fuel Pumps provide great flexability in high performance applications and are now our go-to fuel pump setups for our high-HP E85 applications, with the 625LPH (1500HP) and 1100LPH (2800HP) models being our preffered pumps for 2, 3 & 4 rotor applications.

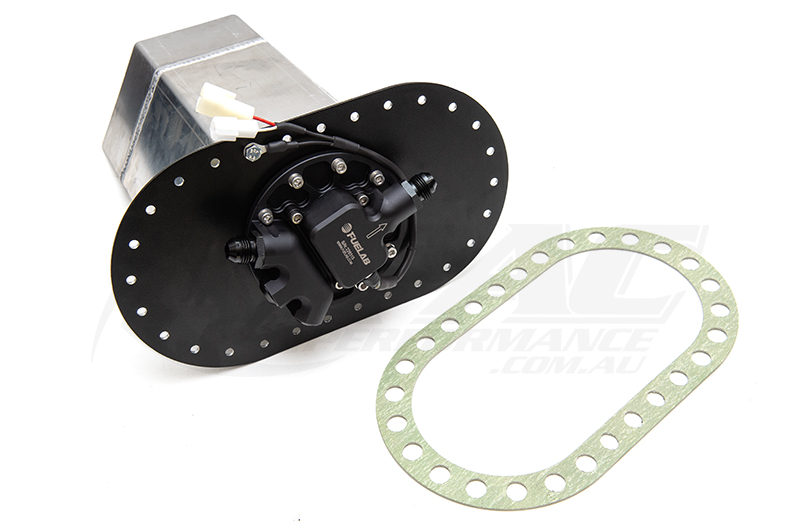

Already own a Pac fuel tank and want to convert to a Fuelab pump setup? We can make that process an easy one with a complete bolt-in conversion cradle kit - available separately

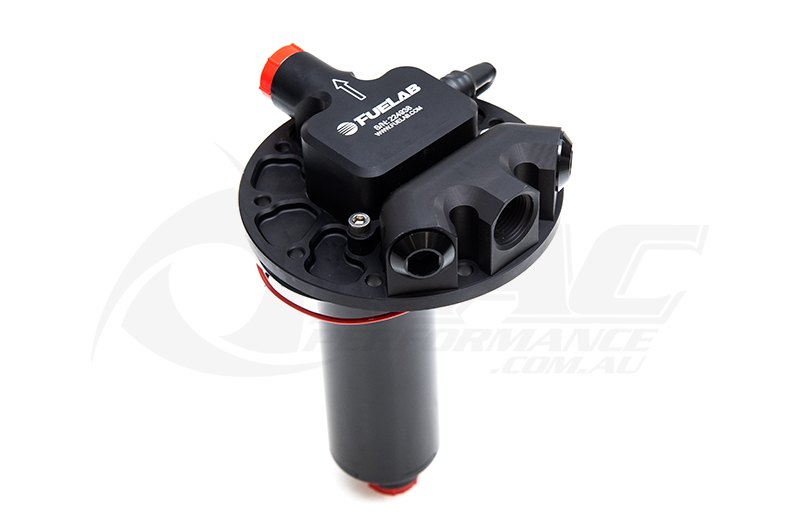

#93904 - 625 LPH @ 45PSI, 125PSI MAX - 13.5v RATED UP TO 1500HP
#93905 - 1100 LPH @ 45PSI, 125PSI MAX - 13.5v RATED UP TO 2800HP Best in Power and Efficiency
Pump Features
- Compatible with gasoline, diesel, methanol and ethanol
- Twin Screw Rotor Pumping Mechanism
- 125PSI Max Operating Pressure
- Higher efficiency means less current draw and less noise
- Superior Priming Capabilities
- Greater resistance to cavitation (vapor lock)
- Backed by a limited lifetime warranty
Electronic Features
- 12 to 16 volt vehicle electrical system compatibility
- Variable duty motor speed
Motor Features
- Lightweight super-efficient DC brushless motor to minimize current draw
- Powerful high flux density Neodymium rare earth magnets
- No motor brushes to wear out or corrode (low-Sulfur diesel, no problem)
- Wet motor design, no dynamic shaft seals that can wear out
Construction Features
- Compact, lightweight design, less than 2.5lbs. Overall length 8”, pump diameter 2”
- Billet Aluminum Construction with anodize per MIL-A-8625 Type II
- Flange mounted SAE 10-Bolt pattern for easy use with fuel cells of fabricated reservoirs
- Long Life, multi-fuel compatible Fluorosilicone static seals
- Accepts standard or port style -8AN fittings
Pulse Width Modulation Compatibility (PWM)
- Compatible with most aftermarket ECU's with PWM output frequency
- Compatible from 100Hz to 5000Hz
